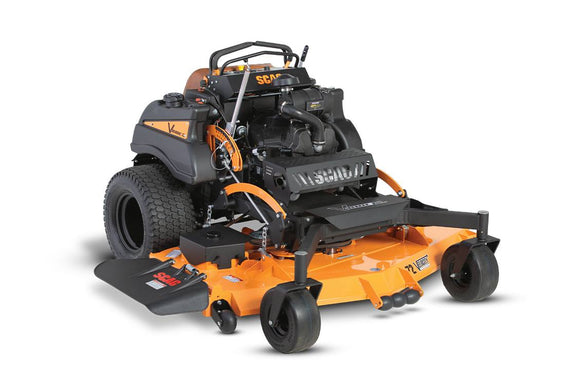

2026 Scag Power Equipment V-Ride XL SVRXL-52V-38FX-EFI BE 52-in.

Features

• 52 in., 61 in. Or 72 in. Cutting Width: The envy of the industry, Velocity Plus™ decks deliver an amazing quality-of-cut and a wide, even discharge on 52 in., 61 in. and 72 in. widths.
• Strong, Adjustable Clutch For Long Life: Provides excellent starting and stopping power for the cutter deck and an adjustable air gap for long life.
• Experience An Unmatched, Ultra-Comfortable Ride: Spacious operator platform with adjustable suspension delivers a smooth ride and reduces operator fatigue. Extra-large comfort cushion allows for comfortable operation, hour after hour. Adjustable platform suspension further enhances operator comfort.
• Convenient, Spring-Assisted Lever: Change cutting heights from 2-6" in ¼” increments. Deck can be lifted from the operating position with the pull of a spring-assisted lever.
• Solid Design For Years Of Dependable Service: Heavy-duty, single-tube, steel main-frame construction delivers superior strength and ensures years of trouble-free service. The front caster-wheel weldments are replaceable.
• Speeds Up To 11.6 Mph: Heavy-Duty Hydro-Gear pumps (16 cc) and high-torque Hydro-Gear wheel motors (18 ci) deliver dependable power, with speeds up to 11.6 mph. Pump shock valves ensure reliability and long life. Cooling fans help maintain safe operating temperatures.
• More Uptime: Comfort cushion and lower panel are removable to allow quick and easy service access to the hydraulic system. This gives operators unrestricted engine compartment access for easy-to-reach grease Zerks and many more features, making servicing the V-Ride XL simple. Spend less time in the shop and more on the job.
• Keep A Real-Time "Eye" On Important System Functions: The Tiger Eye™ Advanced Monitoring System monitors a wide variety of systems in real-time, giving you valuable information in just a glance, right from the operator's seat. (Specific functions vary by mower model and engine.)
• Huge Power, Up To 40 Hp: Choose from Briggs & Stratton Vanguard®, Kawasaki® or Kohler engines; electronic fuel injection (EFI) is standard on all V-Ride XL models.

Dimensions

• Length: 70.5 in.
• Tracking Width: 51.5 in.
• Width (chute down): 65.25 in.
• Width (chute in transport position): 53.75 in.
• Height: 47.75 in.
• Weight: 1,150–1,179 lb

Specifications

• Total Fuel Capacity: 12 gal.
• Drive Tires: 24 in. x 9.5 in.-12 in. (52 in.)
• Caster Tires: 13 in. x 6.5 in.-6 in.
• Drive System Type: Dual Pump & Motor
• Pumps: Hydro-Gear 16 cc
• Motors: Hydro-Gear 18 ci
• Forward Ground Speed: Up to 11.6 mph
• Reverse Ground Speed: 5 mph
• Parking Brake: Hand lever
• Cutting Widths: 52 in.
• Type: Velocity Plus™ cutter deck
• Cutting Height: 2 in. to 6 in. in .25 in. increments
• Lift: Hand lever
• Construction: Tri-plate cutter deck constructed of 3 steel plates totaling nearly 1/2 in. of steel. Reinforcement plates at cutter deck spindles.
• Spindles: Cast-iron housing with tapered roller bearings
• Blade Engagement: Ogura 3.5 (250 ft lb); Adjustable air-gap for extended lif
